| Invention Name | Astrolabe (Islamic design) |
|---|---|
| Short Definition (1 sentence) | A hand-held astronomical calculator that models the sky on a flat disk to support time-finding and star-based measurement. |
| Approximate Date / Period | Islamic refinement: 8th–11th centuries CE Well attested; earlier roots Approximate |
| Date Certainty | Well attested for Islamic-era instruments; Approximate for early origins |
| Geography | From the Mediterranean to West, Central, and South Asia |
| Inventor / Source Culture | Greek scientific roots; Islamic scholars and artisans (collective refinement) |
| Category | Astronomy; Timekeeping; Navigation; Education |
| Importance (Why It Matters) | Portable sky model; precision measurement; advanced metalworking tradition |
| Need / Reason It Emerged | Reliable time and sky-based orientation; practical astronomy in daily life |
| How It Works (Simple) | Rotating star-map over a latitude plate; angles read by scales and sights |
| Material / Technology Basis | Stereographic projection; engraved scales; rotating disks |
| Main Materials | Brass; inlays (silver/copper); engraved scripts |
| Early Use Contexts | Scholarly astronomy; teaching; time-finding; direction-finding |
| Spread Route | Scholarly networks and workshops across regions; later adoption beyond |
| Derived Developments | Instrument-making standards; specialized timekeeping devices; universal designs |
| Areas Influenced | Science; Education; Craftsmanship; Travel and navigation |
| Debates / Different Views | “First” attribution debated for early roots; many early examples undated |
| Precursors + Successors | Precursors: armillary concepts, star charts; Successors: quadrants, refined timekeepers |
| Key Regions / Traditions | Abbasid-era scholarship; al-Andalus workshops; later Mamluk, Ottoman, Mughal production |
| Variants It Shaped | Planispheric; Universal; Quadrant; Spherical; Linear (staff-type) |

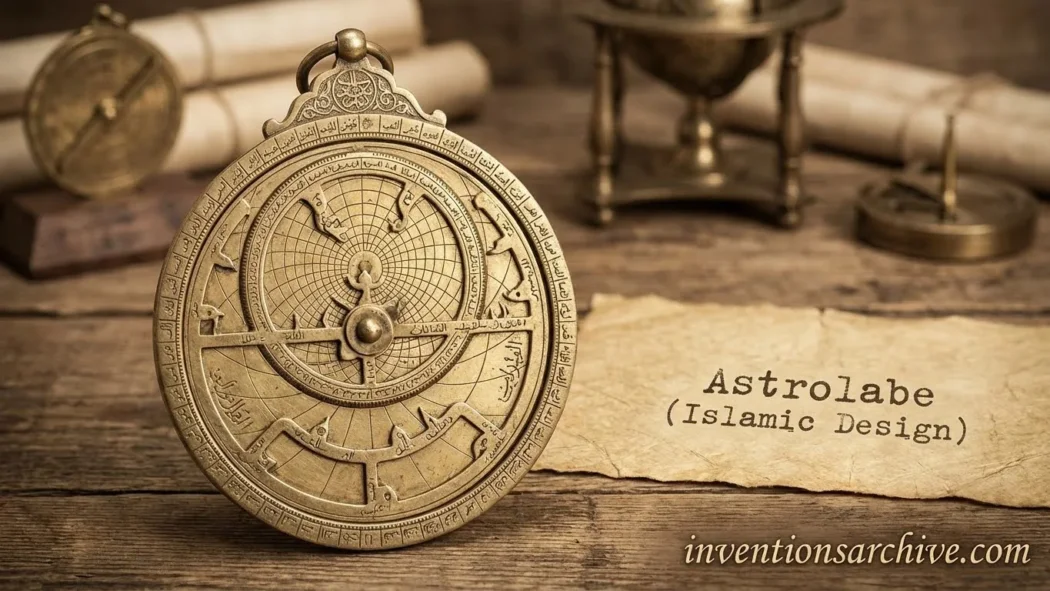

Astrolabes sit at the meeting point of mathematics, skywatching, and fine metalwork. In Islamic design, the instrument became both a precise tool and a carefully finished object—engraved with scripts, scales, and star pointers that turn complex sky geometry into something readable at arm’s length.
On This Page
What The Astrolabe Is
An astrolabe is a compact instrument that turns the curved sky into a flat, readable layout. Think of it as a portable model: stars, key circles of the heavens, and time-related scales are arranged so that many problems in positional astronomy can be solved by rotating and reading.
- Sky mapping: a star network is shown as pointers and labels on a moving disk.
- Angle measurement: sights and degree scales support measured heights of the Sun or stars.
- Time and direction: time-finding and orientation become possible once the sky is “set” for place and date.
In Islamic contexts, museum records note that astrolabes supported determining prayer times and the direction to face for daily worship, alongside broader astronomical study.Details
Islamic Design Features
Readable Science
- Latitude plates (often multiple): tailored horizons for different cities and regions.
- Clear scales: degree rings and time curves arranged for quick reading.
- Problem-solving range: time, rising and setting, and many sky relationships from one device.
Craft and Inscription
- Calligraphy: maker names, ownership notes, and technical labels engraved with care.
- Inlay work: silver and copper details that make scales legible and durable.
- Presentation pieces: some large instruments were designed to be admired as well as read.
A British Museum collection record describes an Islamic astrolabe in brass with silver and copper inlay, named makers and patrons, and notes the instrument’s transmission from Greek science through Arabic translation efforts, with early astrolabe treatises dating to the 9th century.Details
Key Parts and Markings
| Part | Common Term | Role |
|---|---|---|
| Body | Mater | Holds plates and rotating pieces; outer ring carries scales |
| Star Map | Rete | Rotating “network” of star pointers and zodiac positions |
| Latitude Plate | Tympan | Shows local horizon/altitude circles for a specific latitude |
| Rule | Rule | Pointer used to read scales on the front |
| Sight | Alidade | Back-mounted sighting arm for measuring altitude angles |
| Graduated Rim | Limb | Degree markings and time-related scales around the edge |
What Makes Islamic Examples Stand Out
Many Islamic astrolabes emphasize practical readability. Plates can be swapped for different latitudes, inscriptions often include precise maker information, and the layout supports timekeeping and directional needs alongside general astronomy.
How It Works
The core idea is a clever mapping: the sky’s sphere is represented on a plane using projection, so circles in the sky remain circles on the instrument. The moving parts then recreate daily sky motion in a controlled, readable way.
Front: Set the Sky Model
- Choose a plate matched to latitude.
- Rotate the rete to represent the sky’s orientation for date and time.
- Read values where pointers and scales align.
Back: Measure and Convert
- Sighting: the alidade aligns with a bright star or the Sun to measure altitude.
- Scales: degree rings and auxiliary grids convert measurements into usable results.
- Cross-checking: readings on front and back support consistent answers.
Why The Layout Matters
Because the design is geometric, small engraving decisions—line thickness, spacing, and pointer shapes—affect how quickly a reader can find the right curve or scale. That is why Islamic astrolabes are often celebrated for combining accuracy with visual clarity.
Evidence and Timeline
Surviving instruments and museum catalogues make the story tangible. A dated example in the al-Sabah Collection is identified as an earliest known Islamic astrolabe, signed by Nastulus and dated 315 AH / 927–28 CE (Baghdad).Details
| Period | What Changes | Why It Matters |
|---|---|---|
| 8th century CE | Early Islamic engagement with astrolabe knowledge; treatises and construction | Foundation for regional styles and skilled workshops |
| 9th century CE | Astrolabe texts and instruments appear in early Islamic scholarly settings | Instrument use becomes organized and teachable |
| 10th century CE | Dated instruments survive; craftsmanship and labeling become highly refined | Clear evidence of mature design language |
| 11th century CE | Universal designs develop, reducing dependence on a single latitude plate | Broader portability across places and travel |
A Bibliotheca Alexandrina collection note links Islamic development to named scholars, including an 8th-century figure associated with early writing and construction, and it also describes the “universal” astrolabe connected with al-Zarqali and its later name in Europe.Details
Types and Variations
Planispheric Astrolabe
The familiar disk form: a rotating rete above a latitude plate. It is the most widely collected type and the one most often associated with Islamic workshop traditions.
Universal Designs
Some designs aim to work across locations rather than requiring many plates. These “universal” approaches reflect a drive for portability while keeping a readable sky geometry.
Related Instruments in the Same Family
- Quadrant forms: partial-disk instruments that keep key angle and time functions.
- Spherical variants: rare forms that preserve a 3D sense of the sky model.
- Linear “staff” types: designs that translate sky relationships into a different physical format.
Where It Shows Up in Collections
Islamic astrolabes appear in major museum holdings because they represent scientific practice and workshop excellence at once. The Oxford Museum of the History of Science describes its online astrolabe resource as drawing on a collection presented as the world’s largest and most important, spanning regions from India and the Middle East to Europe.Details
Objects also preserve personal histories: maker signatures, patron names, and later ownership marks. Those inscriptions turn measurement tools into documents of craft lineages and scholarly environments.
FAQ
What does an astrolabe measure?
An astrolabe links angles in the sky to time and positional relationships, using engraved scales and rotating parts.
Why do Islamic astrolabes often include multiple plates?
Because key curves depend on latitude. Swappable plates allow one instrument to match different locations while keeping readability.
What is the rete?
The rete is the rotating star framework, a cut or engraved disk with pointers for selected bright stars and zodiac reference points.
How does “universal” differ from standard planispheric design?
Universal approaches aim to reduce dependence on many latitude plates, emphasizing portability while keeping the sky model consistent.
Are Islamic astrolabes only scientific tools?
They are scientific instruments, yet many examples also show high craft and careful inscription. That combination helps explain their long-standing museum interest.
What makes a dated astrolabe especially valuable for history?
A firm date anchors workshop practice in time. A signed, dated instrument provides a clear reference point for comparing styles, scales, and technical choices.
